Description
Greenlee 43178 Description
Long-reach chain saws are hydraulically powered cutting tools intended for general tree trimming from the ground or from an aerial device. Greenlee ’s patented Super Spool™ design allows the tool to be used with either open-center or closed-center hydraulic systems. The dielectric properties of the fiber-glass pole reduce the chance of electric shock when the saw is used near energized electrical lines. Other features include an anti-kickback chain, a fully covered sprocket guard, a hand-stop safety collar, a trigger inter-lock and a trigger guard.
Greenlee 43178 Includes
- (1) Chain Saw
Greenlee 43178 Features

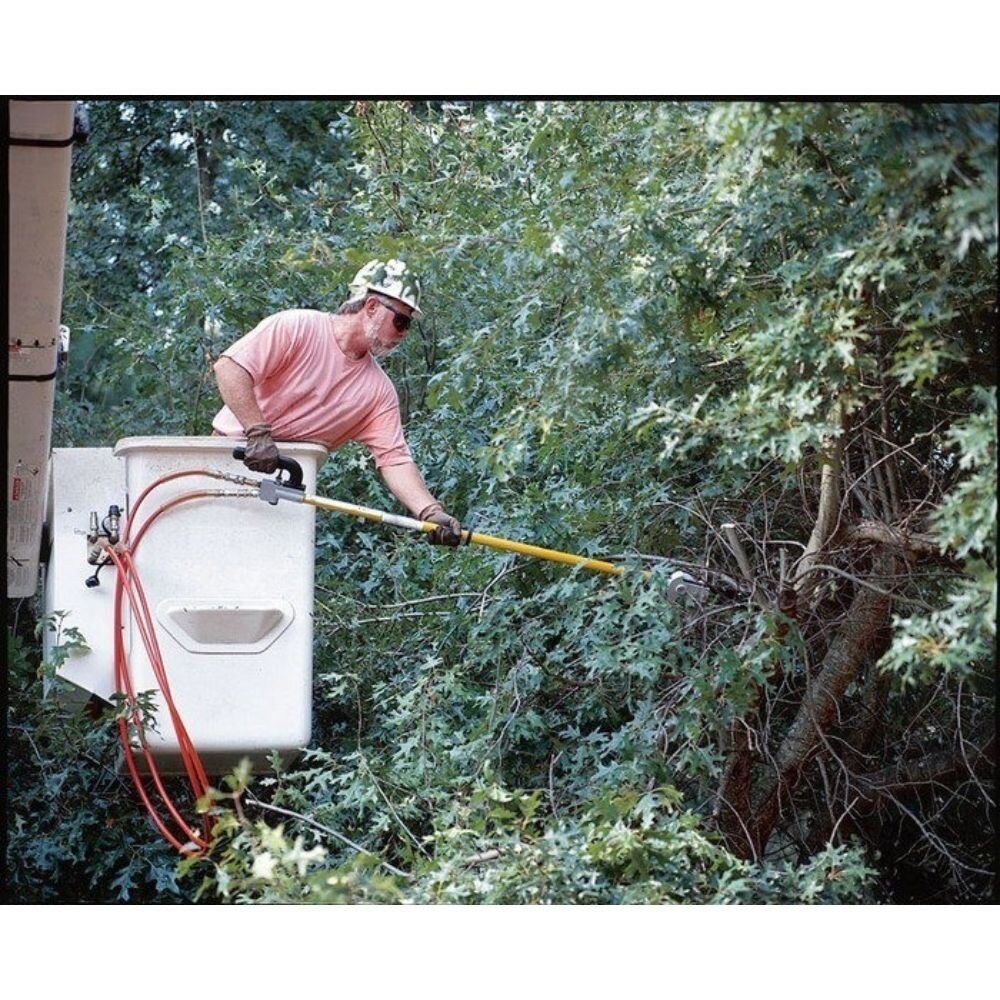

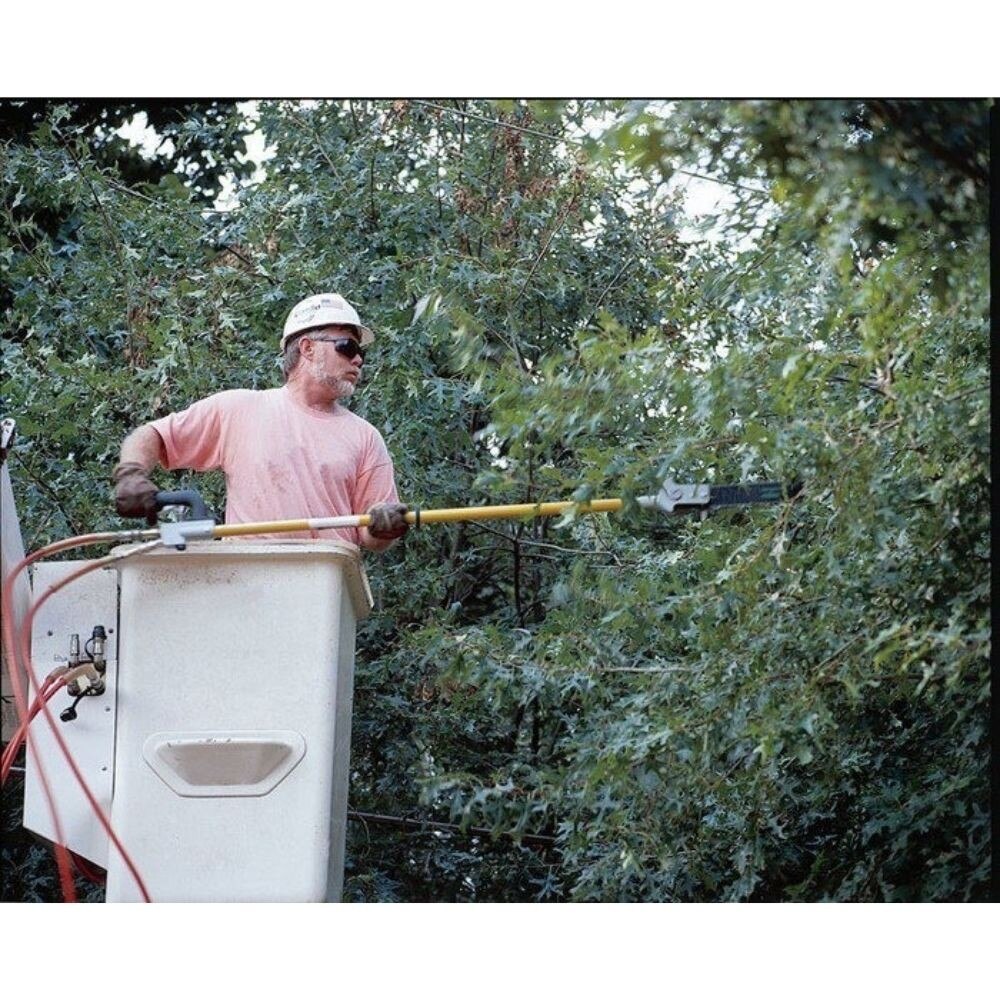

- Cuts hard-to-reach branches from aerial basket or from the ground
- Super Spool selector control for use on Open and Closed-Center hydraulic systems
- Available in three lengths
- Insulated fiberglass extension tubes, tested to meet OSHA Regulation 1910.269
- Safety features include: two-step trigger, trigger guard, and fully covered sprocket guard
- Anti-kickback chain and automatic chain oiler
- Rugged high torque gear motor
- Unfilled and foam-filled extension tube versions offered
Greenlee 43178 Specifications
| Bar Gauge | 0.058" (1.47 mm) |
| Chain Size | 0.325" (8.30 mm) Pitch |
| Cutting Capacity | 13" (330 mm) |
| Extension Type | Fiberglass - Tested to 100 KVA for 5 MINT |
| Flow Range | 5 - 8 GPM (19 - 30 LPM) |
| Length | 62.50" (1.60 m) |
| Operating Pressure | 1000 - 2000 PSI (69 - 140 BAR) |
| Pressure Port | 9/16-18 SAE O-Ring |
| Return Port | 3/4-16 SAE O-Ring |
| Standard | Meet OSHA Regulation 1910.269 |
| System | Super Spool Selector Control for Use on Open and Closed-Center Hydraulic Systems |
| Type | Long Reach |
| Width | 4" (102 mm) |
| Accessory | 54923 HTMA Male Coupler, 54924 HTMA Female Coupler |
| Application | For Use On Open And Closed-Center Hydraulic Systems |
