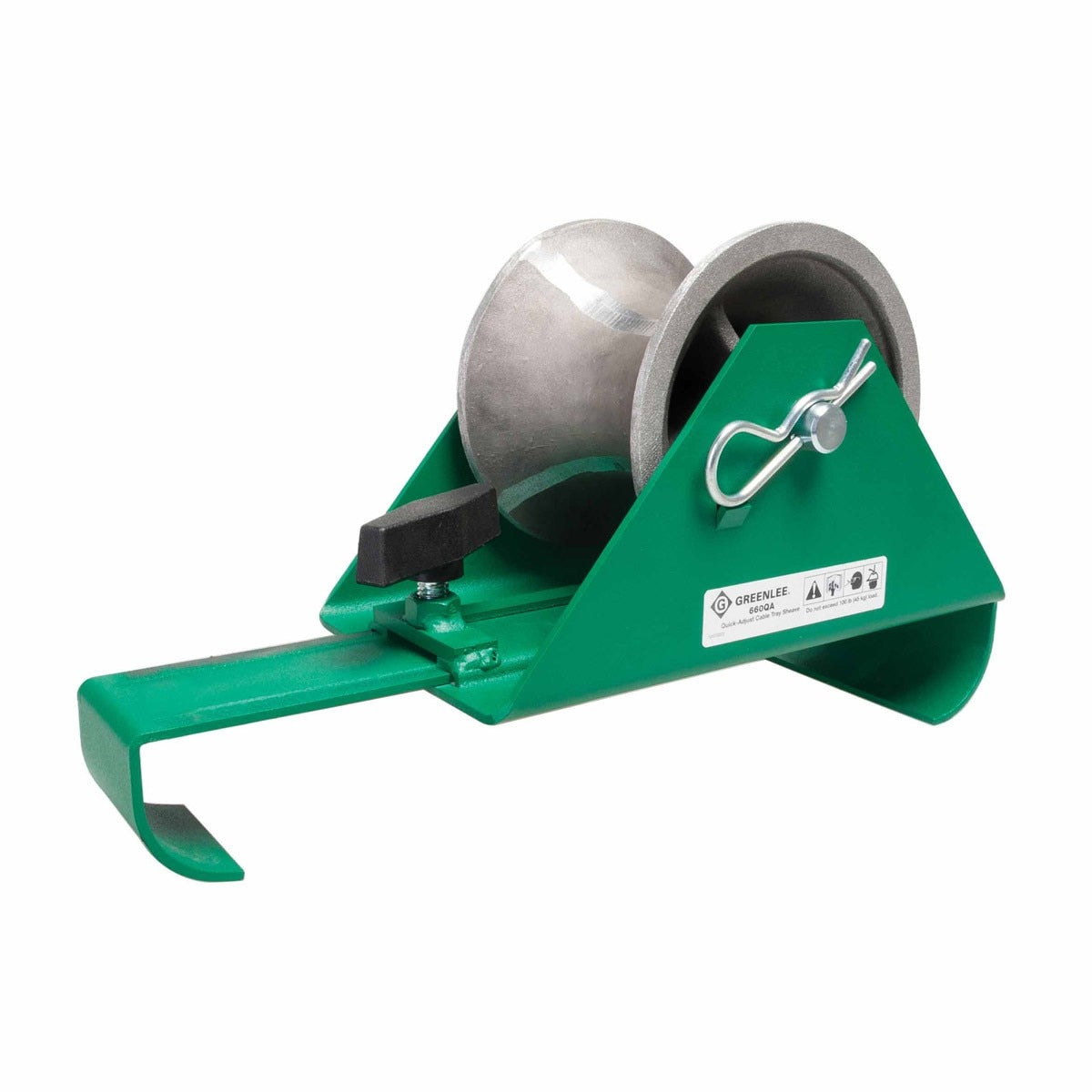

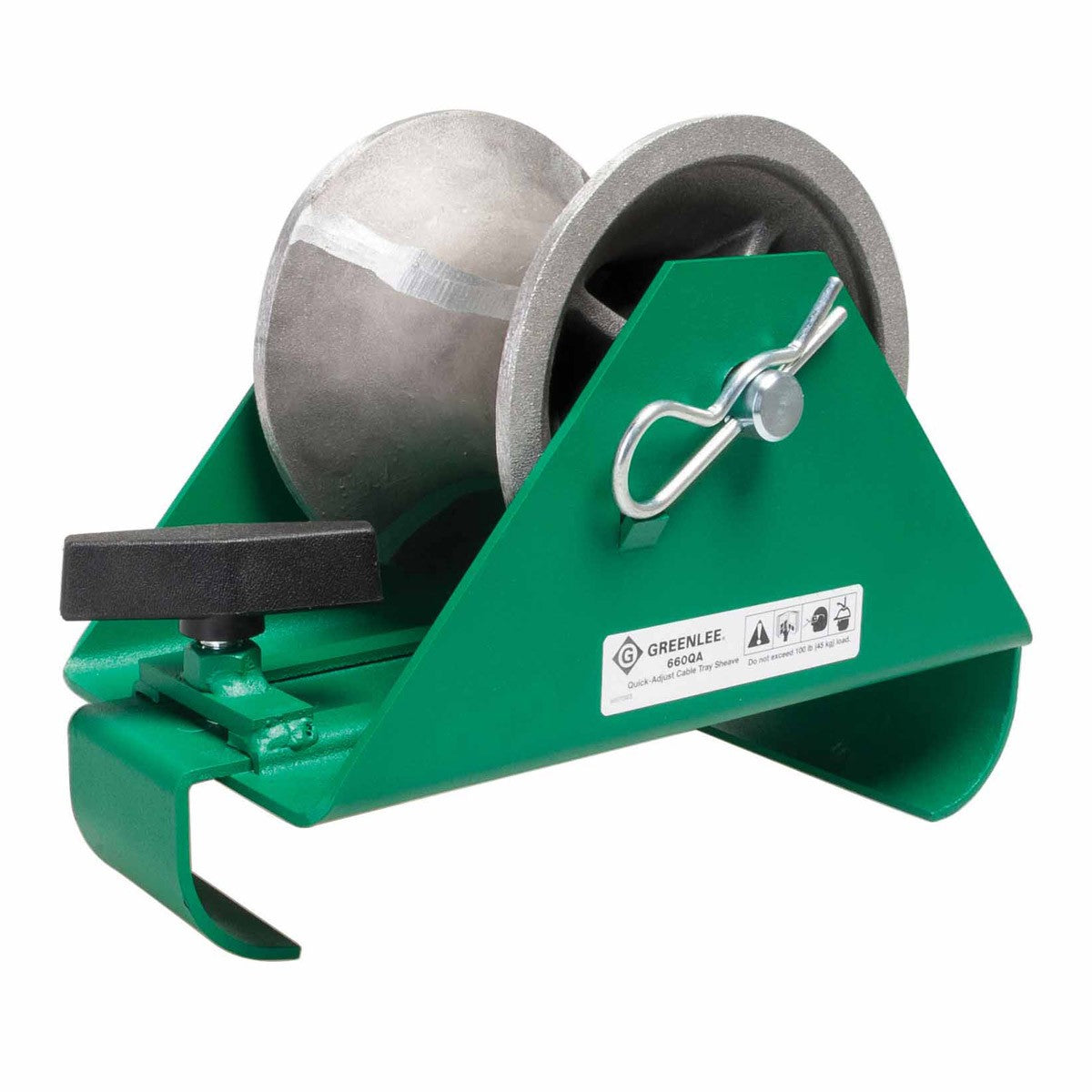

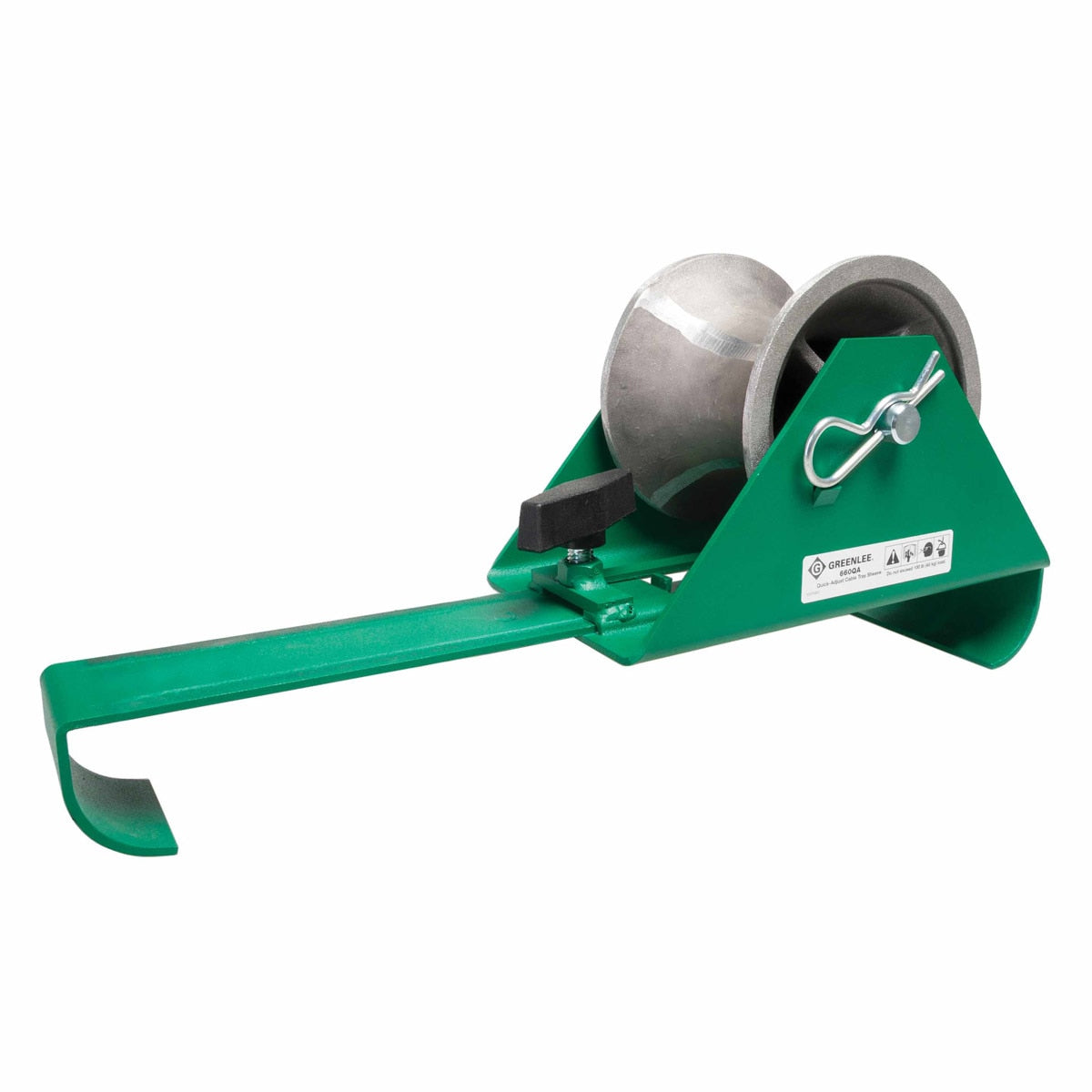

Greenlee 660QA Sheave-Tray, Quick Adjust (Pkgd)

Includes:
(1) Quick Adjust Sheave-Tray (Packaged)

Description:
• 7x faster setup and disconnect
• Attaches to all varied size tray rung spacing
• No loose pieces

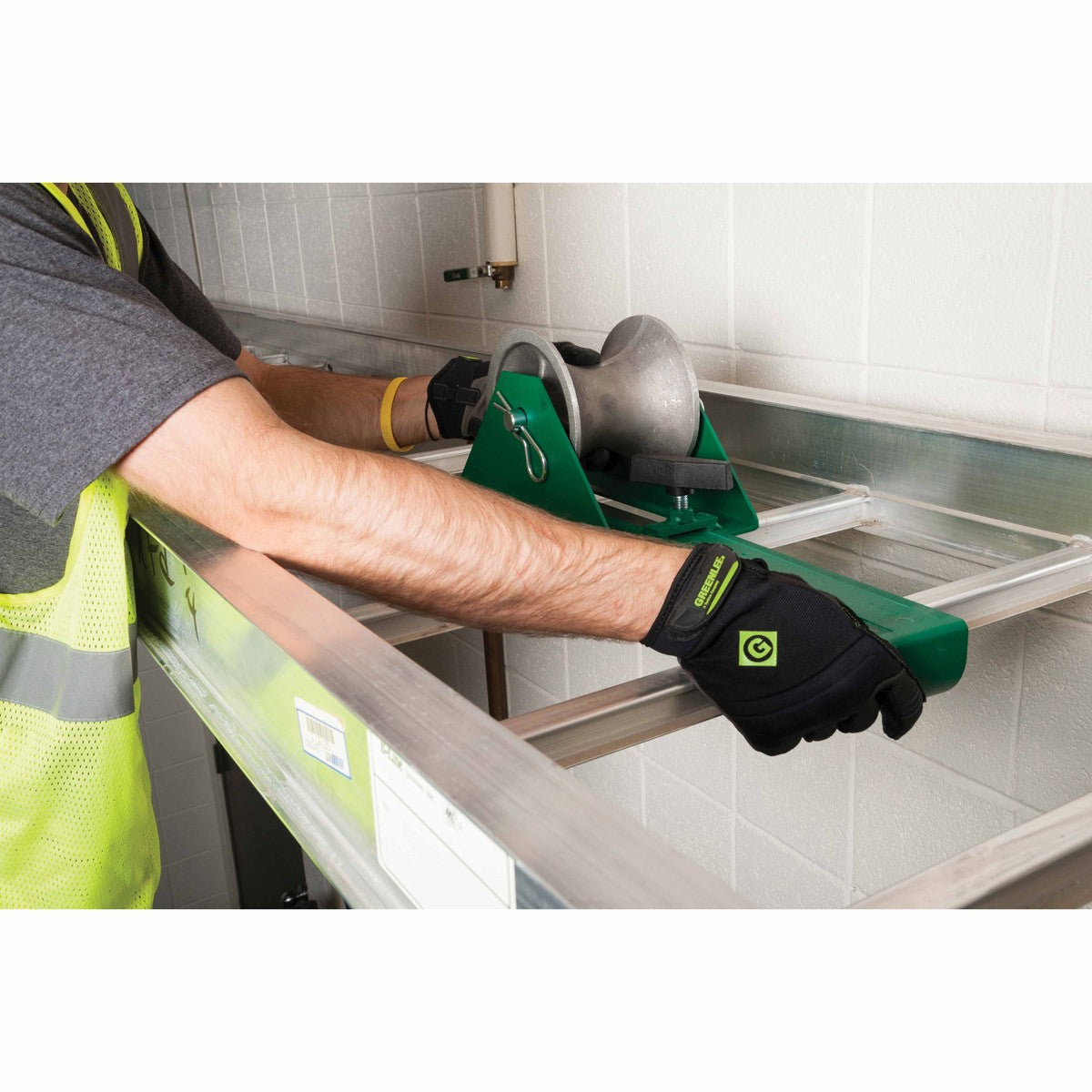

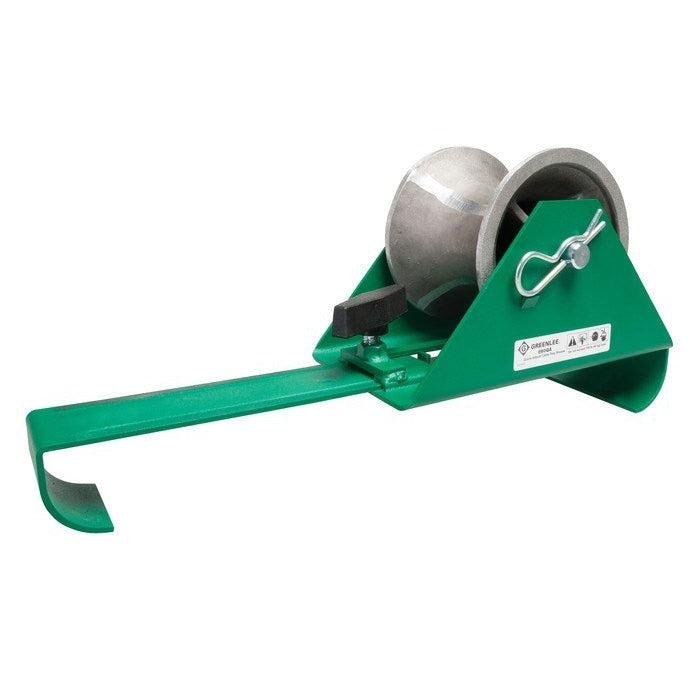

• Adjustable Slide leg that can be extended to fit on tray rung spaces up to 20" (508 mm)

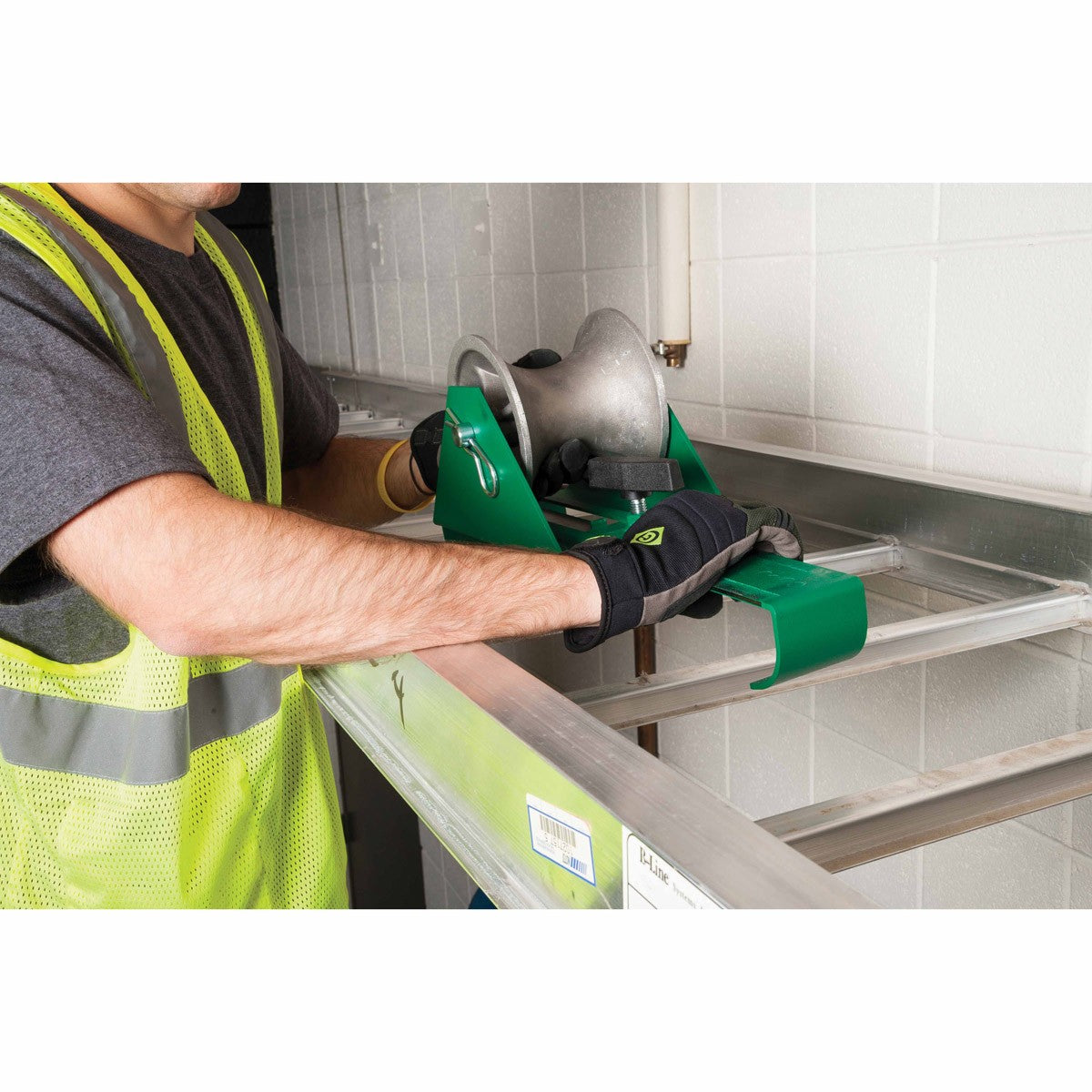

• Set Screw Handle to easily lock and unlock adjustable sliding leg

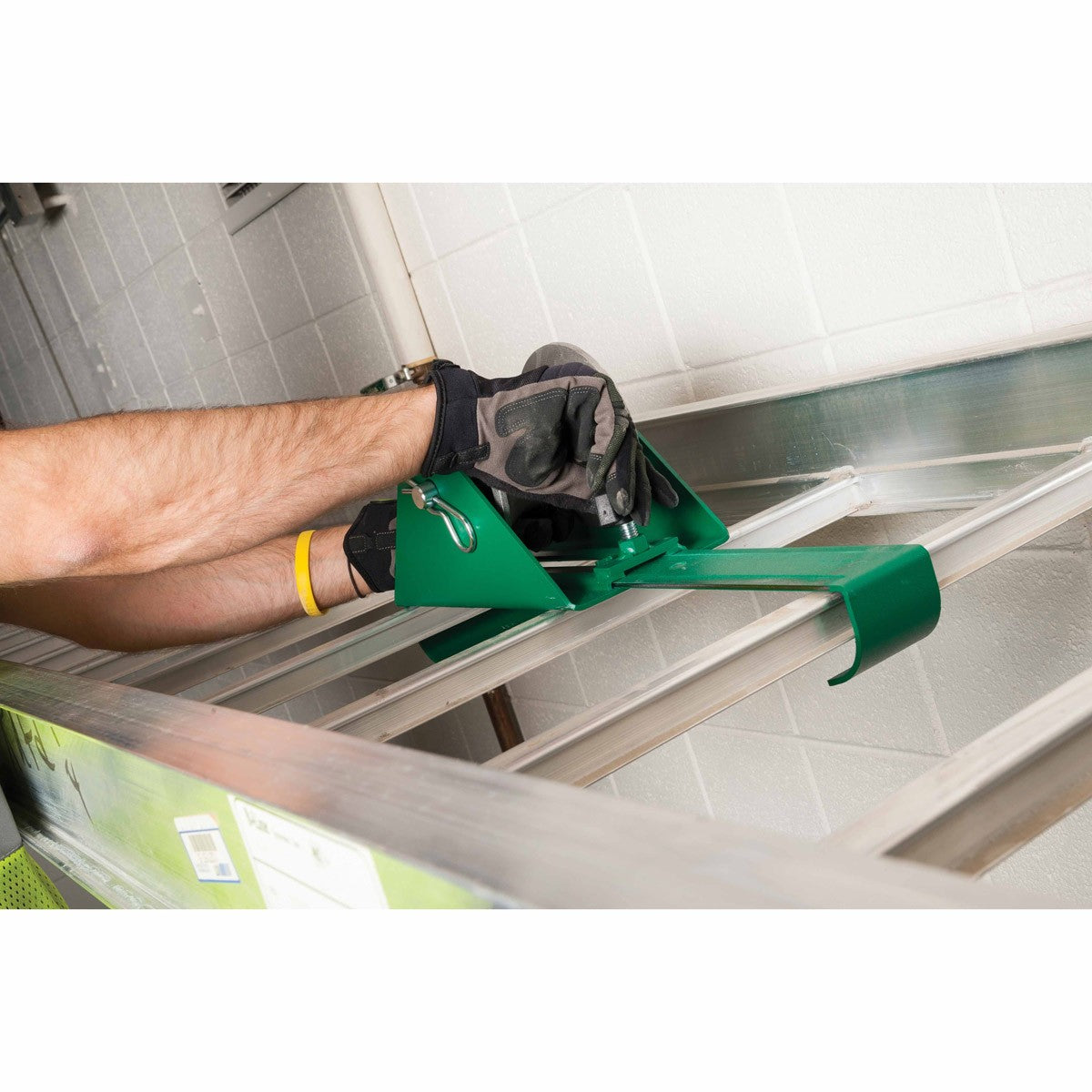

• Edge hook feet to grab tray more securely
• Steel frame easily attaches to cable tray up to 2" 950.8 mm) thick
• Cast aluminum sheave with robust shaft and bronze bushings
• Easily handle forces of up to 100 lbs (45.4 kg)
• Designed and Assembled in USA

Specification:

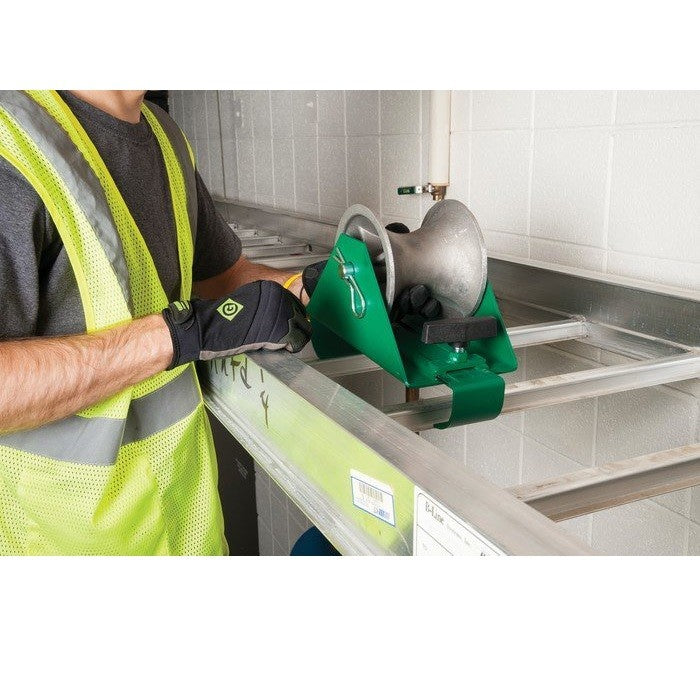

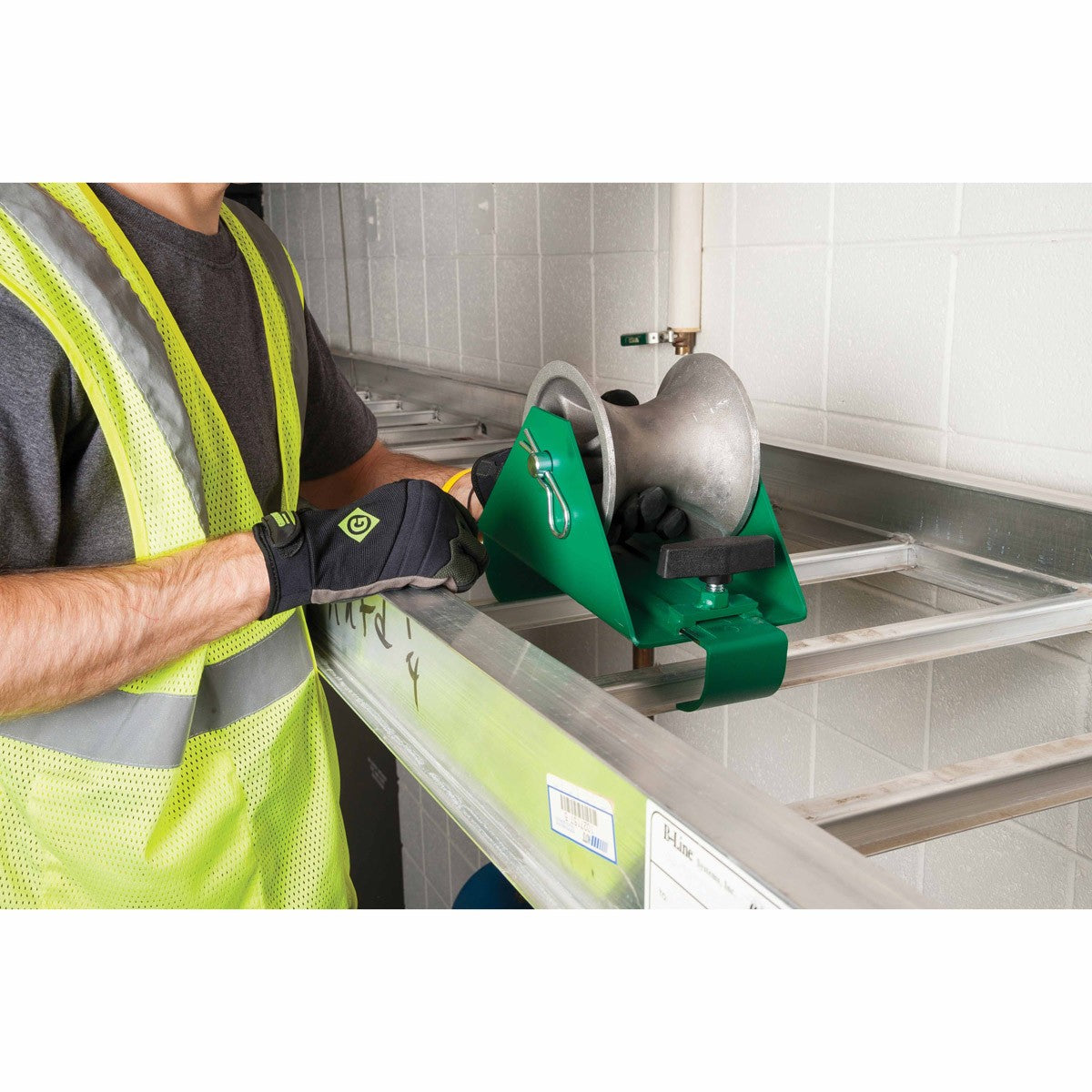

• Application : Use to assist pulling cables along non basket-style cable trays. Designed to aid loads during straight runs on the tray.
• Cable Size : 4.5" (114 mm) Cable Diameter
• Capacity : 100 lb (45 kg)
• Height : 9" (228.6 mm)
• Length : Retracted: 11-1/2" (292.1 mm) Extended: 21-1/4" (539.75 mm)
• Overall Height : 9" (228.6 mm)
• Overall Length : Retracted: 11-1/2" (292.1 mm) Extended: 21-1/4" (539.75 mm)
• Pulling Capability : 100 lb (45 kg)
• Roller Opening Size : 4.5" (114 mm)
• Weight : 11.5 lb (5.2 kg)
• Width : 7" (177.8 mm)
