Description

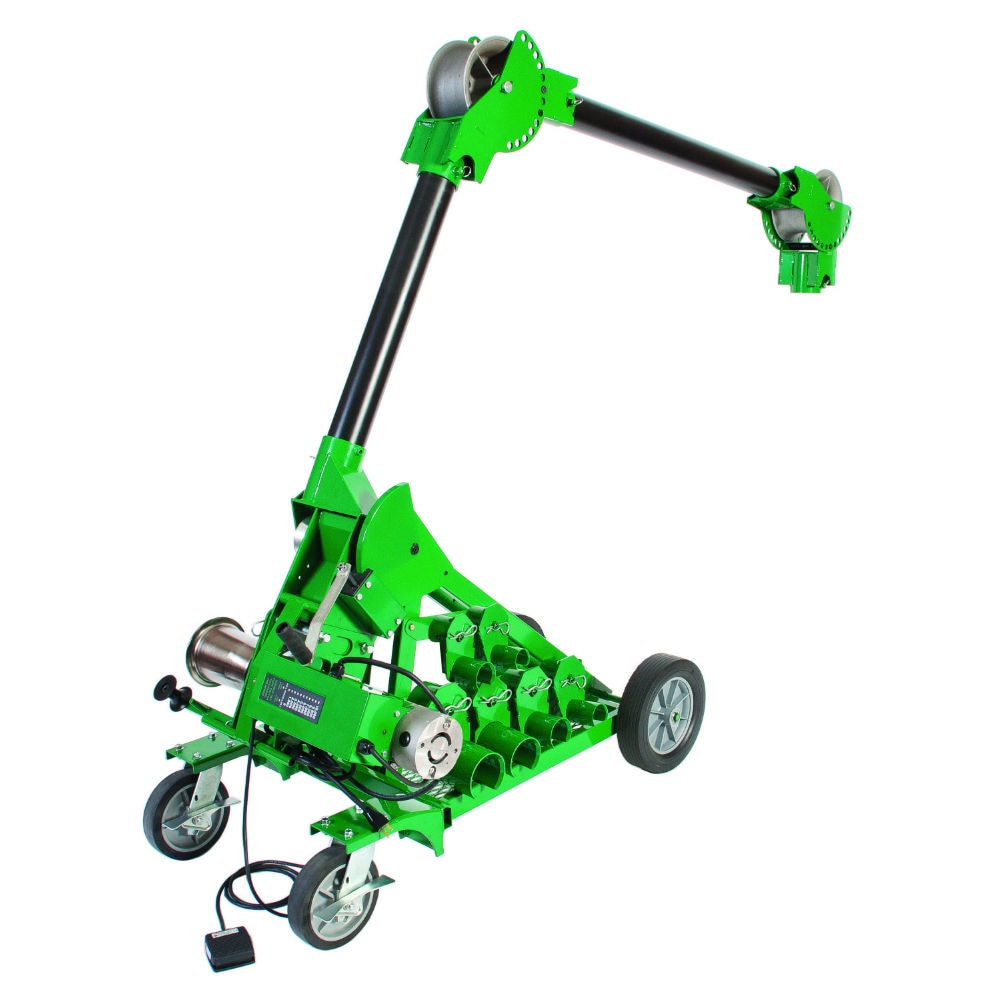

Greenlee 6906A Description
The UT10-2S motor is designed specifically for heavy-duty cable pulling applications. Greenlee’s two-speed motor provides consistently stronger pulling power at less amperage than the competition. This increases durability and provides a steady pull speed.
Greenlee 6906A Includes
- (1) UT10-2S Puller Assembly (UT10)
- (1)Mobile VersiBoom II
- (6) Adapters
- (1) 3' Boom
- (1) 4' boom
- (1) Adapter Weldment, 2""
- (1) Adapter Weldment, 2-1/2""
- (1) Adapter Weldment, 3""
- (1) Adapter Weldment, 3-1/2""
- (1) Adapter Weldment, 4""
- (1) Adapter Weldment, 5""
Greenlee 6906A Features
- 2 Speed Ultra Tugger (UT10-2S) is a one-stop-shop: The only 2 speed puller on the market that can shift from high speed/low load pulling to low speed/high load pulling with a simple double tap motion on thefoot pedal control switch
- Use for cable pulls requiring high as well as low pulling loads
- The no-load high speed is 16 FT/MINT and is best suited for loads up to 4000 LB where the speed will be 12 FT/MINT
- The no-load low speed is 9ft/mint and can be used on loads up to 8000 lb where the speed will be 6 ft/mint, or a momentary peak capacity of 10000lb
- 2-speed motor that delivers the fastest pulling time forall pulling needs over the widest (10000 lb) range
- Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 lb
- Easy control features for increased productivity: on-board force gauge provides visual communication of pulling force and speed changes
- Quick speed change from high speed to low-speed by simply double tapping foot pedal
- Removable foot pedal for convenience
- Sets up in less than 2 minutes and can be used in every pulling situation
- This combination of speed and versatility can increase your productivity, equaling more pulls in a day and delivering greater benefit to your bottom line
Greenlee 6906A Specifications
| Capacity: | 10,000 lbs |
