Description

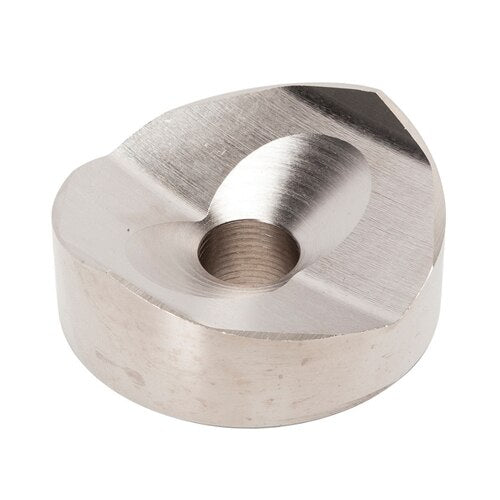

Greenlee 7212SP-1/2P Includes
- (1) Punch
Greenlee 7212SP-1/2P Features
- SPEED PUNCH™ saves time and money with every hole
- Up to 3X's faster setup and disassembly. "No-Thread" punch design eliminates cross-threading
- Available for Mild Steel - 1/2" to 4" conduit size
Greenlee 7212SP-1/2P Specifications
| Application: | For punching conduit size holes in mild steel, aluminum, fiberglass and plastic |
| Capacity Mild Steel: | Max: 10 gauge (3.0 mm) |
| Diameter: | Actual hole size: 0.885" (22.5 mm) |
| Draw Stud: | Std. Draw Stud: 7212SP14 (3/8" X 3.82") |
| Draw Studs: | Alt. Draw Stud (Long): 7212SP13 (3/8" x 4.69") - For use w/ 746 Hydraulic Ram |
| Driver: | Use with Greenlee Punch Drivers: LS50L - Battery-Powered Driver, or Hydraulic Drivers:10383 - QUICK DRAW® FLEX, 34288 - QUICK DRAW® STANDARD, 33786 - QUICK DRAW 90®, or 746 HYDRAULIC RAM & 767 PUMP |
| Material: | Carbon-Alloy Steel, Nickel Plated |
| Minimum Pilot Hole: | 1/2" (12.7 mm) |
| Operation: | Must be used with other SPEEDPUNCH™ System components |
| Sub Brand: | SPEED PUNCH™ |
| Type: | Knockout Punches |
