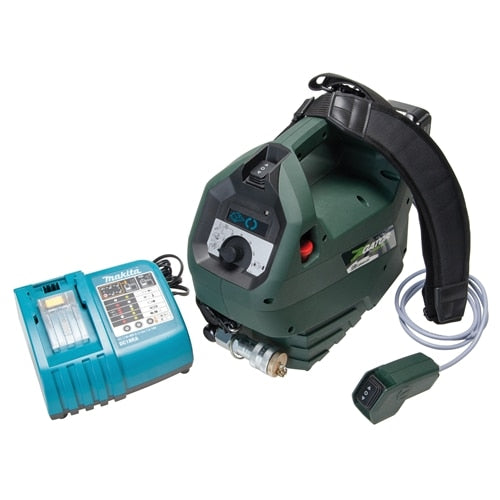

Description
FEATURES:
• 3 in 1 program settings for crimping, cutting, and punching functions.
• Real-time crimp force monitoring with numeric digital display featuring Intelli-CRIMP™ technology.
• Audible and visual fault alert.
• Real-time work history with downloadable PDF application.
• The EHP700L11 weighs a mere 14.1 pounds.
• Padded shoulder strap included for ease of transport.
• Operates in any orientation.
• On-board as well as corded remote activation switches.
• The EHP700L11 operates from a single 18V battery with on-board storage for second battery.
• Pump provides real time charge status on both active and stored batteries.
• 18V lithium ion (Li-ion) battery provides 70% more cycles per charge.
• Connections are UL and cUL classified for copper and aluminum, when used with Greenlee tools on 7 brands of color-coded lugs and splices.
• Most competitive tools are UL approved with only one connector brand.
SPECIFICATION:
• Operating pressure: 10,000 PSI (700 bar)
• Oil volume: 0.80 qt (0.76l)
• Flow rate of double stage pump:
• Low pressure range: up to 0.9 l/min
• At full pressure: 0.3 l/min
• Degree of protection: IP43
• Battery voltage: 18 V
• Battery capacity: 3.0 Ah, Li-Ion
• Number of batteries: 2 - 1 active, 1 stored
• Charging time: 30 minutes
• Ambient temperature: 10°F - 104°F (-12°C to 40°C)
• Weight: 10.8 lbs. (4.9 kg) without batteries
• Weight with 2 batteries: 14.1 lbs.
• Length: 14.0” (356mm)
• Width: 6.5” (165mm)
• Height: 11.5” (292mm)
