Description
Greenlee FG01 Includes

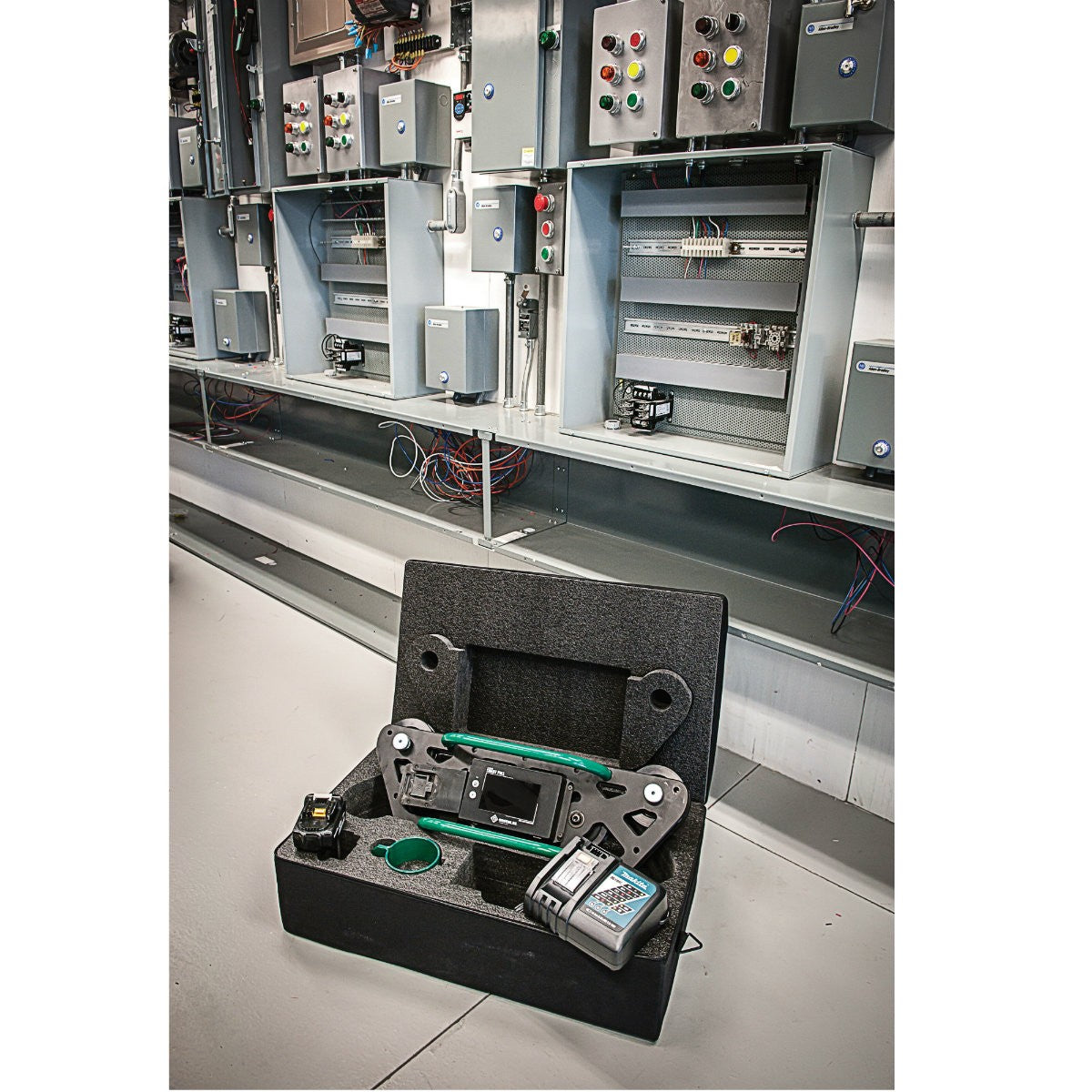

- Carrying Case
- Battery
- Charger
- Mounting Hardware
Greenlee FG01 Features
- Faster: Instant early warning alerts allows contractor to take timely action, avoiding rework.
- Safer: Reduce liability by recording information with accuracy of +/- 2%, ensuring a healthy pull and peace of mind for the contractor.
- Easier: Wirelessly monitor force, speed and distance through the entire pull.

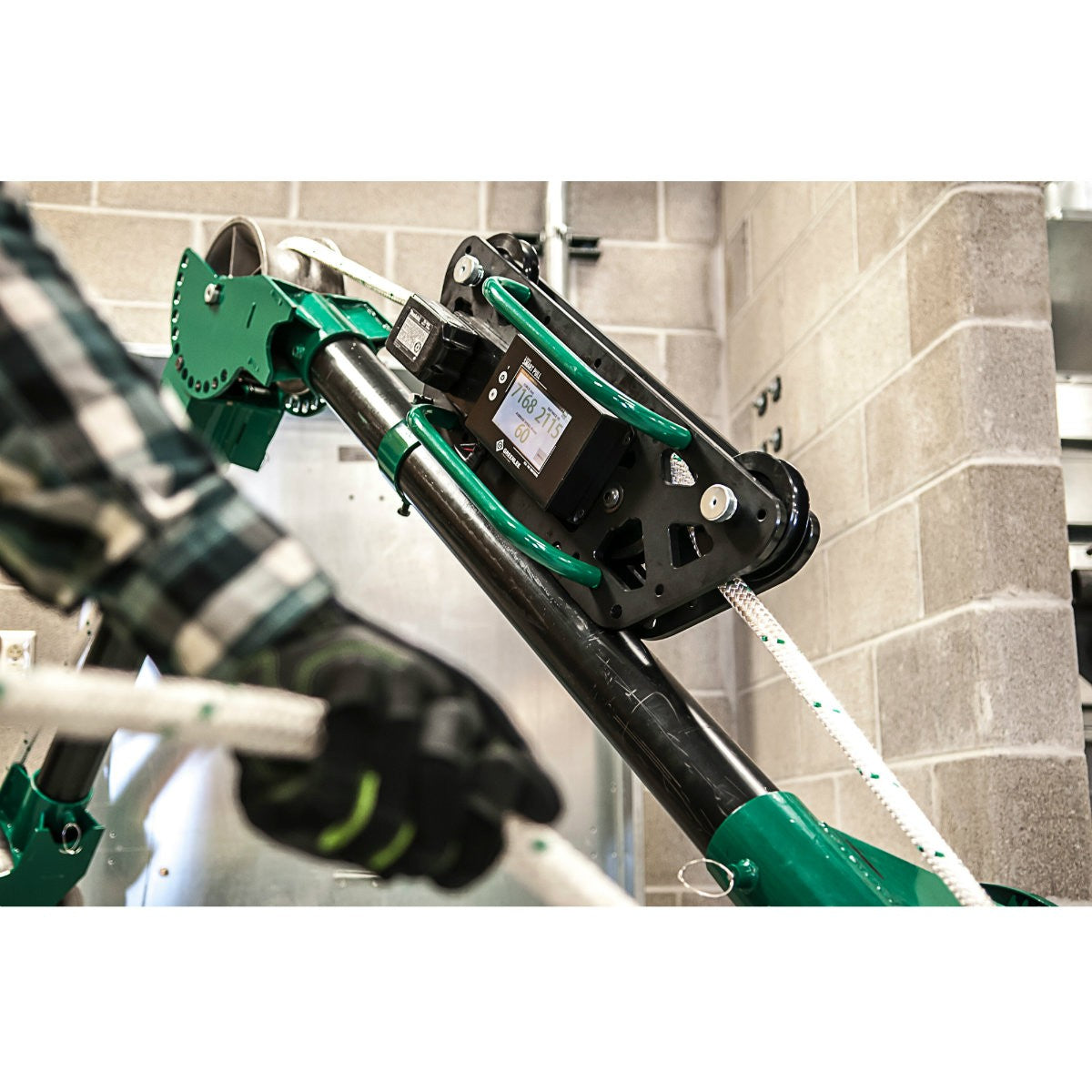

- Touch Screen LCD screen displays real time force, speed and distance.

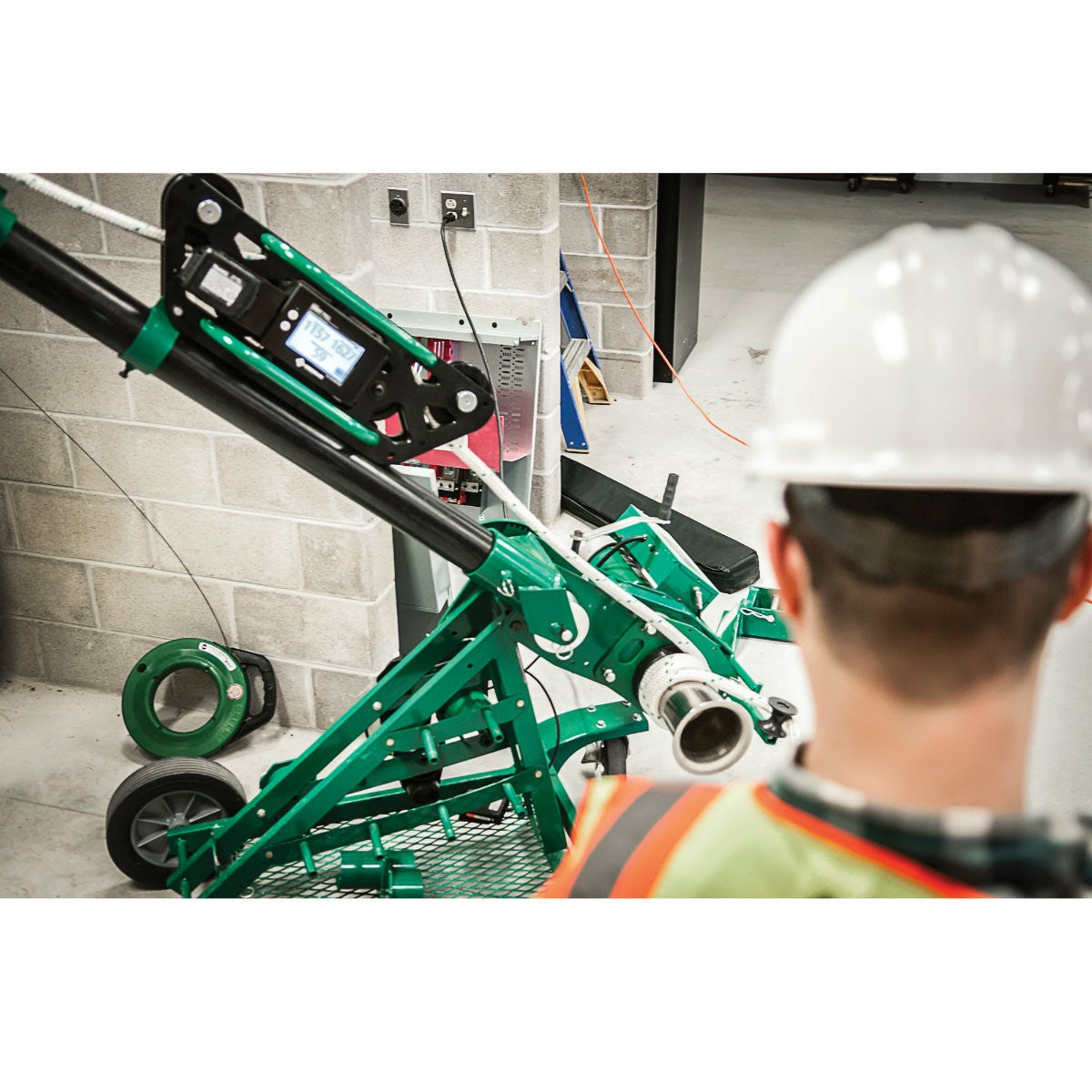

- Use with existing UT10/UT8 Mobile VersiBoom II, floor mount and chain.

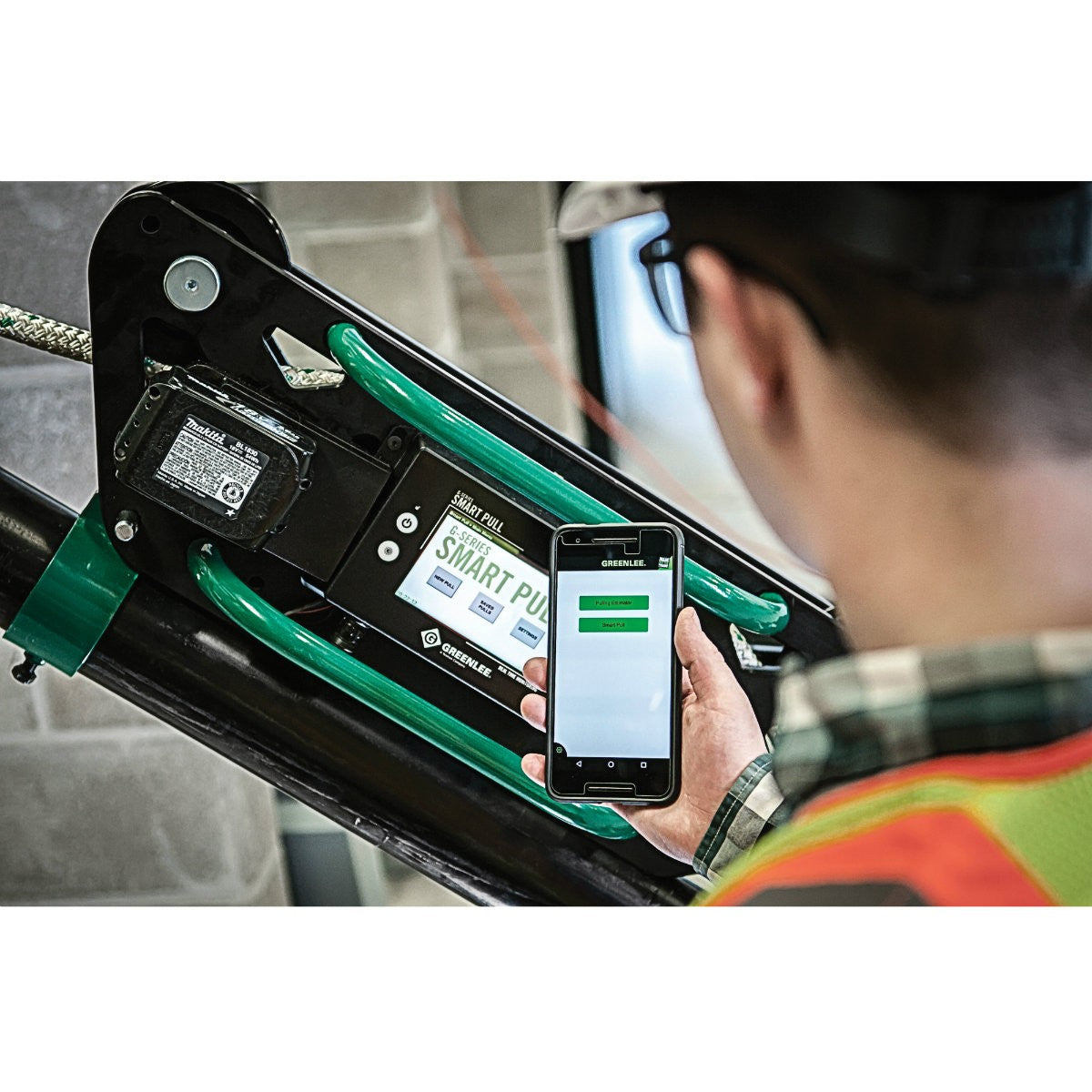

- Wireless platform with Bluetooth file transfer from PullCalc App.

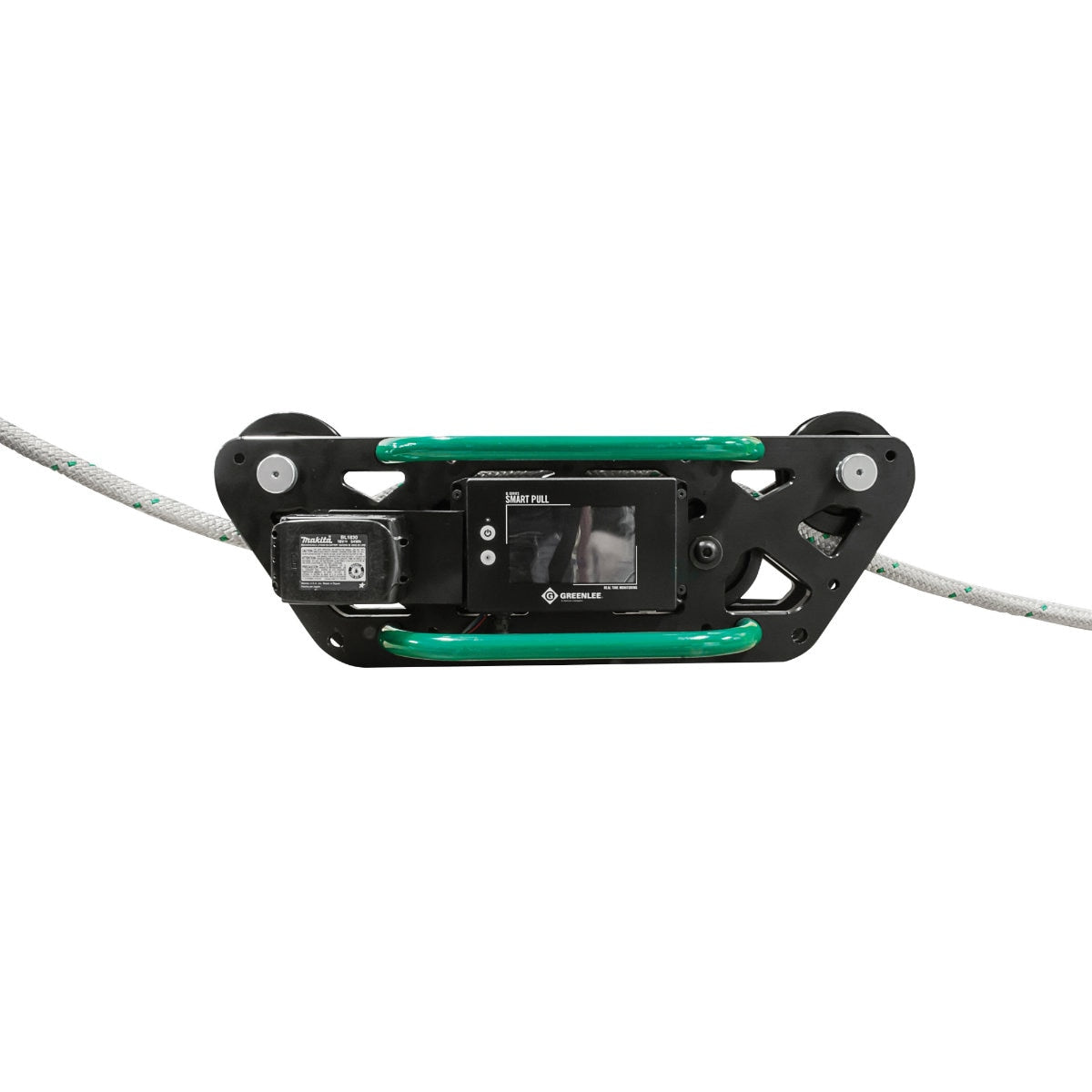

- 5-Roller design lets you lay down rope, replace rollers and start pulling.
- Easily insert and remove rope with removable roller and cam-locking pin.
- USB download for easy data retrival.
- 128MB of onboard memory.
- Skeletal frame reduces weight for ease of handling
- Powered by any standard Makita 18V battery for up to 20* hours (*5aH battery)
- Sturdy steel handles protect the electronics and make the smart pull easy to carry.
- What happens when cable is overstressed during a pull? Diminished transmission capabilitiesPotential fire hazardRework and liability for the contractor
Greenlee FG01 Specifications
| Application | Used for measuring pulling force, distance and speed during cable pull |
| Power Supply | Up to 5aH Makita battery |
| Pulling Force | Up to 10,000 lbs. (44.48kN) |
| Pulling Rope | Up to 7/8" Diameter Double braided rope |
| Voltage Rating | 18V |
| Onboard Memory | 128MB |
| Accuracy | +/-2% |
| Length | 25.5" |
| Height | 9.5" |
| Width | 8" (including back knob) |
| Weight | 34.2 lbs without Carrying Case52.2 lbs with Carrying Case |
